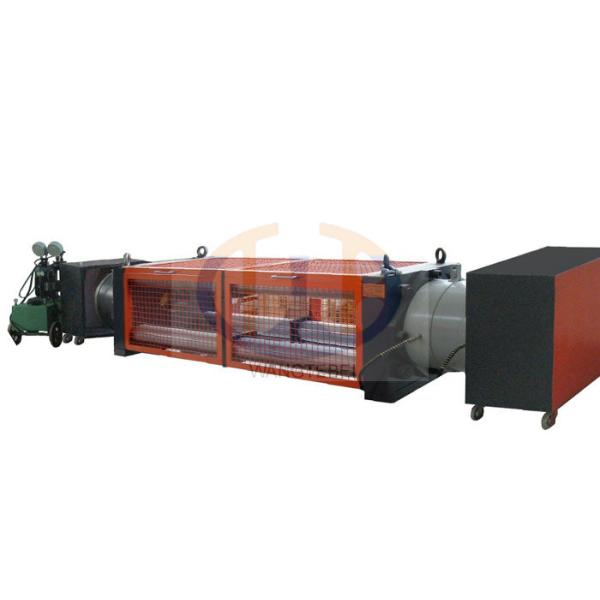

MJW computer control electro-hydraulic servo static load anchorage, grip and coupler testing machine
1. introduction
This product is suitable for performance testing of anchorages, grips and couplers for prestressing tendons. The machine uses microcomputer for automatic acquisition, storage and processing of test data, during the test, test curves, detecting forces and displacement changes can be displayed on the computer screen, and test results and curve graphs can be printed. The system has a large-tonnage loading structure and automatic force detection function, test system is reasonably designed, easy to use and highly precise.
2. features
Adopting horizontal frame, high precision servo oil source, computer and data processing system.
The main loading frame is made up of steel frame, guide column, cylinder piston pairs, fixed crossbeam, moving crossbeam and protecting cover.
Computer auto collecting and process test data, display test curves, measuring load force and displacement, and print test results with test curves.
3. specification
| Model |
MJW-5000 |
MJW-6500 |
MJW-10000 |
| Max. capacity |
5000KN |
6500KN |
10000KN |
| Measuring range |
2%-100%FS |
| Precision of force value |
±1% |
| Displacement measuring range |
0-200mm |
| Precision of displacement value |
±1% |
| Relative resolution |
±0.5 |
| Piston stroke |
200mm |
| Tensile space |
3400mm |
3600mm |
| Dim. Of loading frame |
3900x800x1000mm |
4000x950x1100mm |
| Weight |
3500kg |
4000kg |
6500kg |
4. software introduction
- Easy to control and friendly interface
windows based interface, easy and fast to reach different functions, suitable for most of operators using habits. Integrated all common operation functions, like specimen information input, specimen choosing, curve plotting, data display, data process, data analysis, test operation etc., easy and convenient to operate.
- Full digital display and computer control
Adopting remote controller, fast response and reliable to parameter gathering. Realize digital adjustment and zeroing of load, deformation and displacement as well as PID parameter adjusting.
- Different control mode & speed setting
- Programmable control mode
Users can program test mode according to their own requirements.
- Load holding facility for a specific period:
Report is editable
